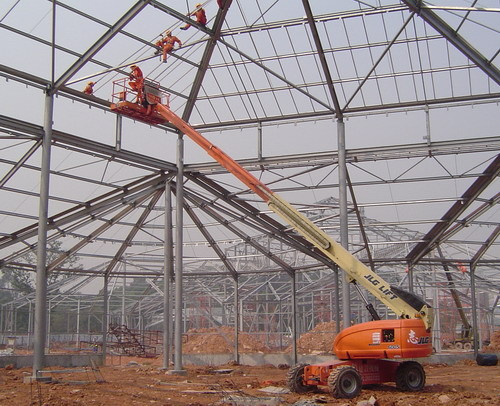

REACH SPECIFICATIONS |
|
Platform Height |
|
60 ft. 3 in. (18.36 m) |
|
|
Horizontal Outreach |
|
49 ft. 6 in. (15.09 m) |
|
|
Swing |
|
360 Degrees Continuous |
|
|
Platform Capacity-Unrestricted |
|
500 lbs. (227 kg) |
|
|
Platform Capacity- Restricted |
|
1,000 lbs. (454 kg) |
|
|
Platform Rotator |
|
160 Degrees Hydraulic |
|
|
|
|
|
|
|
DIMENSIONAL DATA |
|
|
Platform Size |
|
36 x 96 in. (0.91 x 2.44 m) |
|
|
Overall Width |
|
8 ft. 2 in. (2.49 m) |
|
|
Tailswing |
|
3 ft. 8 in. (1.10 m) |
|
|
Stowed Height |
|
8 ft. 5 in. (2.57 m) |
|
|
Stowed Length |
|
27 ft. 11 in. (8.51 m) |
|
|
Ground Clearance |
|
15 in. (38 cm) |
|
|
Gross Vehicle Weight* |
|
22,500 lbs. (10,206 kg) |
|
|
Max. Ground Bearing Pressure |
|
5.45 psi (0.383 kg/cm? |
|
|
* certain options or country standards will increase weight |
|
|
CHASSIS |
|
|
Drive Speed |
|
1.6 mph (2.6 kph) |
|
|
Gradeability |
|
55% |
|
|
Turning Radius |
|
Zero |
|
|
Type of Tracks - Optional detachable rubber pads |
|
Steel |
|
|
Tracks Width |
|
20 in. (51 cm) |
|
|
|
|
|
POWER SOURCE |
|
|
Diesel Engine |
|
Deutz F4M2011, 65 hp (48 kW) |
|
|
|
|
Caterpillar 3044C, 63.3 hp (47.2 kW) |
|
|
Fuel Tank Capacity |
|
40 gal. (151.4 L) |
|
|
Hydraulic Reservoir |
|
32 gal. (121.1 L) |
|
|
Auxiliary Power |
|
12V DC |
| |
